3.0mm Pitch Single / Double Row SMT Board To Board Connector Reach Approval

Brand Name : JVT

Model Number : JVT3026

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T or Western Union

Supply Ability : 300000 per month

Delivery Time : 7-10 working days

Packaging Details : PE bag packing +outer carton

Pitch : 3.0mm

Test Voltage : 1.5kVAC

Current Rating : 5A

No.of Pins : 2-30

Approval : ISO9001/SGS/UL/ROHS/Reach

Contact Now

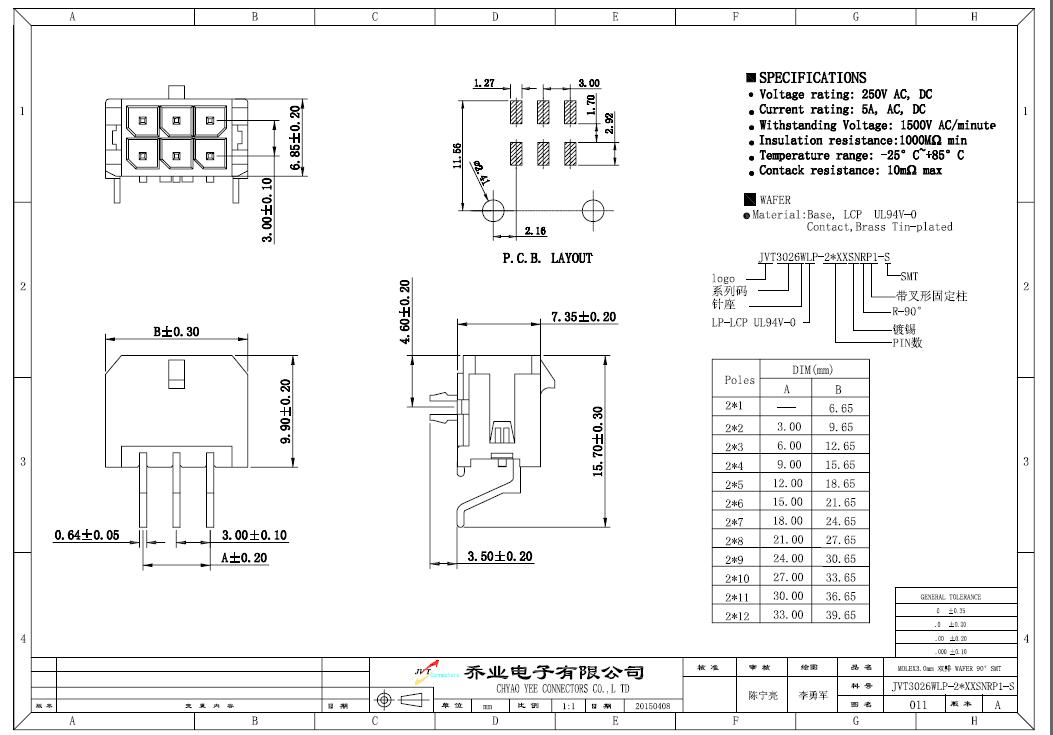

SMT Friction Lock Headers, 3.0mm Pitch, Vertical/Horizontal, Single/Double Row Tape & Reel package

JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .

All are offered with small moq's ,the majority being stocked items .

Datasheet (PDF) & Other Documents Download center:

1.2016 JVT catalogue.pdf

CARATTERISTICHE

Passo:3.0mm
Corrente: 1A AC/DC
Tensione: 100V AC/DC
Cavo: AWG 30÷26
Corpo: PBT UL94V-0 colore naturale
Nylon 6T UL94V-0 colore naturale
Terminali maschio: ottone stagnati
Gamma di temperatura: -40°C ÷ 105°C

3.0mm Pitch Single / Double Row SMT Board To Board Connector Reach Approval

Payment Details:

Payment Terms:T/T or Western Union

Minimum Order:1000 Pieces

Primary Competitive Advantages:

Service

Country of Origin

Experienced Staff

Guarantee/Warranty

International Approvals

Prompt Delivery

Quality Approvals

Product Tags:

smt board to board connector

pcb board to board connectors

3.0mm Pitch Single / Double Row SMT Board To Board Connector Reach Approval Images
